Congsin 60A MPPT Solar Charge Controller – Intelligent 12V/24V Solar Power Regulator for High Load Off-Grid Systems
Smart charge regulation with real-time LCD display, dual USB ports, and optimized MPPT charging technology – built for performance and durability in demanding off-grid conditions.
Thank you for reading this post, don't forget to subscribe!🔋 Product Introduction

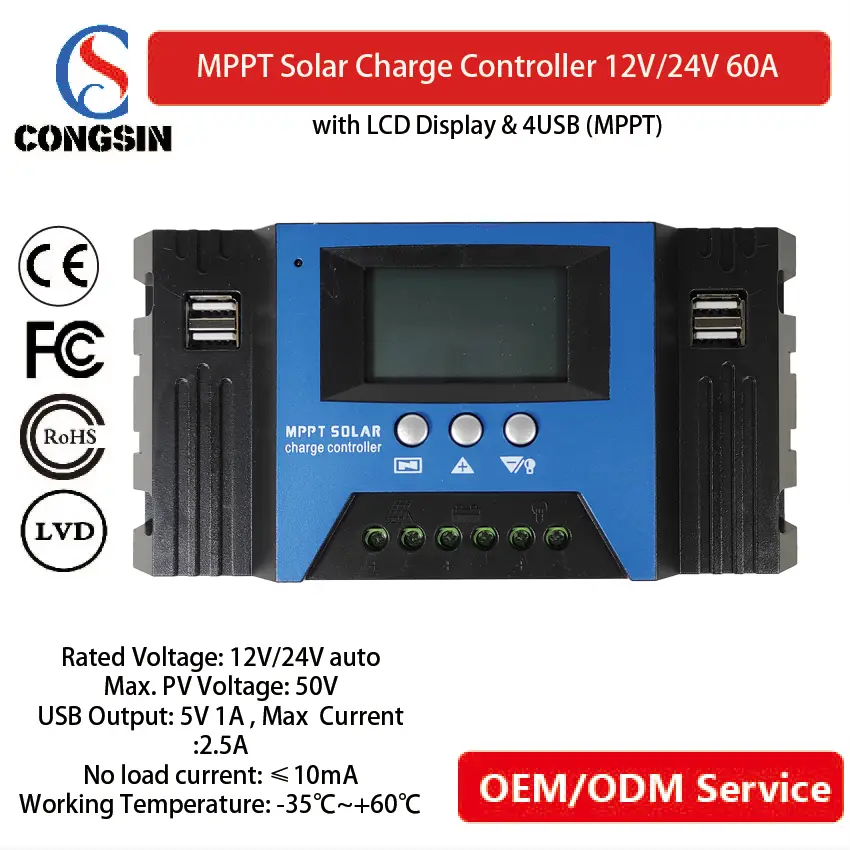

The Congsin 60A MPPT charge controller is designed for solar systems requiring consistent high current delivery. Featuring advanced Maximum Power Point Tracking (MPPT) technology, it improves energy harvesting from solar panels by up to 30% compared to traditional PWM models. With auto-detection for 12V/24V systems, this unit is ideal for large RV solar kits, mobile cabins, or permanent installations in rural or marine environments.
🌟 Key Highlights
- 🔧 MPPT Technology: Extracts maximum wattage from solar arrays in real time.
- 🖥️ Clear LCD Display: Tracks charging current, battery voltage, and system status.
- 🔌 Dual USB Output: 5V USB ports for powering small electronics directly.
- 🛡️ Full Protection Circuitry: Overcharge, overload, reverse polarity & short-circuit safeguards.
- ❄️ Wide Temperature Range: Suitable for extreme outdoor environments from -35°C to 60°C.
📐 Technical Specs
| Model | MPPT-60A |
| Rated Battery Voltage | 12V / 24V Auto Recognition |
| Max PV Voltage | 50V |
| Charge Current | 60 Amps |
| USB Output | 2 × 5V / 1A (Max 2.5A) |
| Standby Current | ≤10mA |
| Working Temperature | -35℃ to +60℃ |
| Certifications | CE, FCC, RoHS, LVD |
🚐 Use Cases & Applications
- ✅ High-power RV solar setups with multiple appliances
- ✅ Marine off-grid battery systems on sailboats and yachts
- ✅ Remote field workstations needing 24/7 power
- ✅ Large backup solar kits for cabins and emergency shelters
⚙️ OEM/ODM Services
We offer private label and firmware customization services for solar installers, wholesalers, and international partners. Get your own brand printed and pre-configured with preferred settings.
Ready to upgrade your off-grid solar power setup? Get in touch now!
